Bộ Thiết Bị Đầu Cuối Nối Dây Điện (270 Cái)
(4.5)5 ratings
108.000₫
-13%94.000₫
Số lượng:
Quyền lợi khách hàng & bảo hành
7 ngày hoàn trả
Bảo hành theo chính sách từ nhà bán
Mô tả sản phẩm

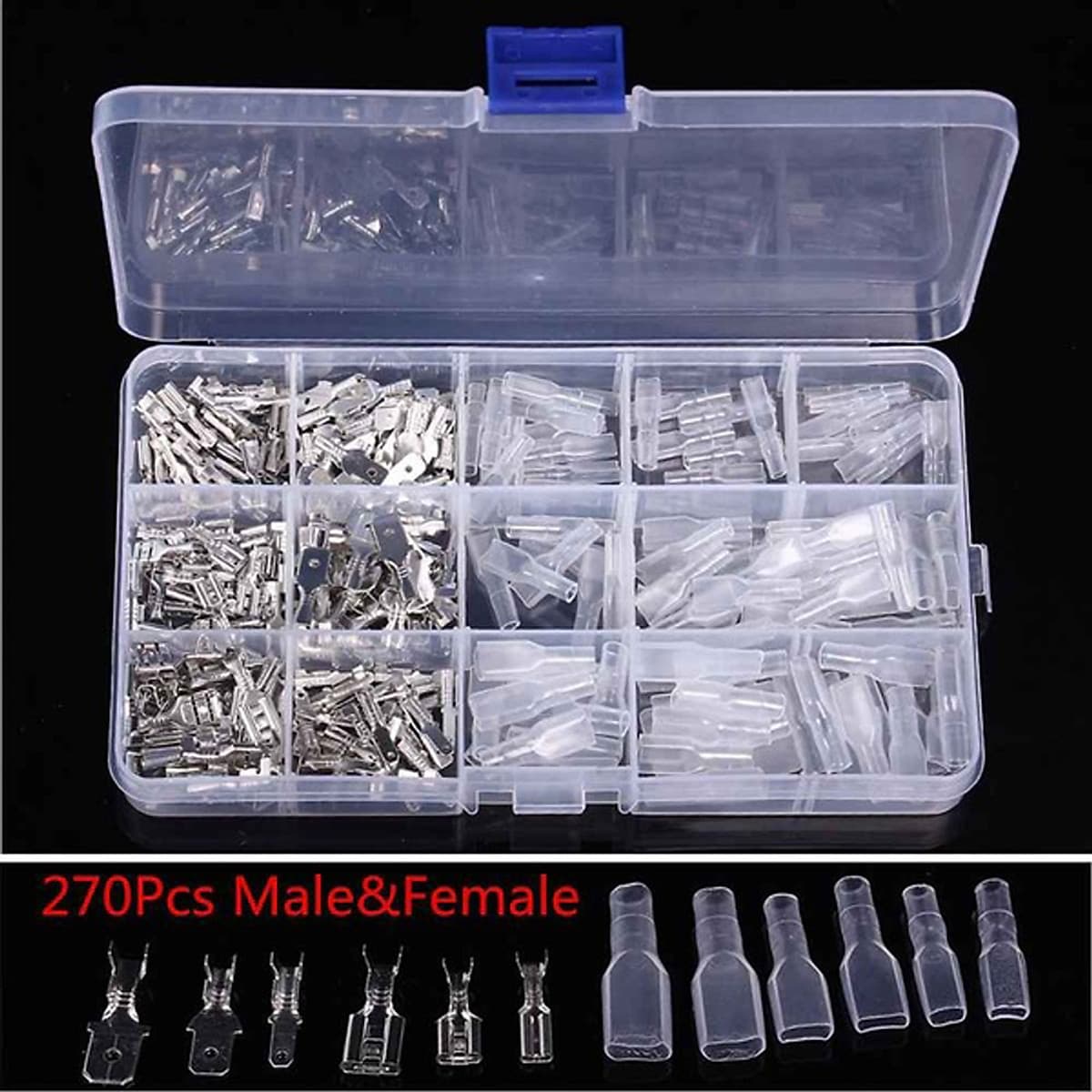

Non-insulated mixed male and female spade crimp terminal connector assorted kit
Including 28mm / 48mm / 63mm types with insulating sleeves
Made of copper with good conductivity, widely used for electric wire connectionMade of fine quality material, practical, easy to install and use, wide application range, has a long service life.
Features:
Non-insulated mixed male and female spade crimp terminal connector assorted kit.
Including 2.8mm / 4.8mm / 6.3mm types with insulating sleeves.
Made of copper with good conductivity, widely used for electric wire connection.
Wire crimp type can be used for home appliances, automobiles, audio systems for battery or rocker switches quick connection / disconnection.

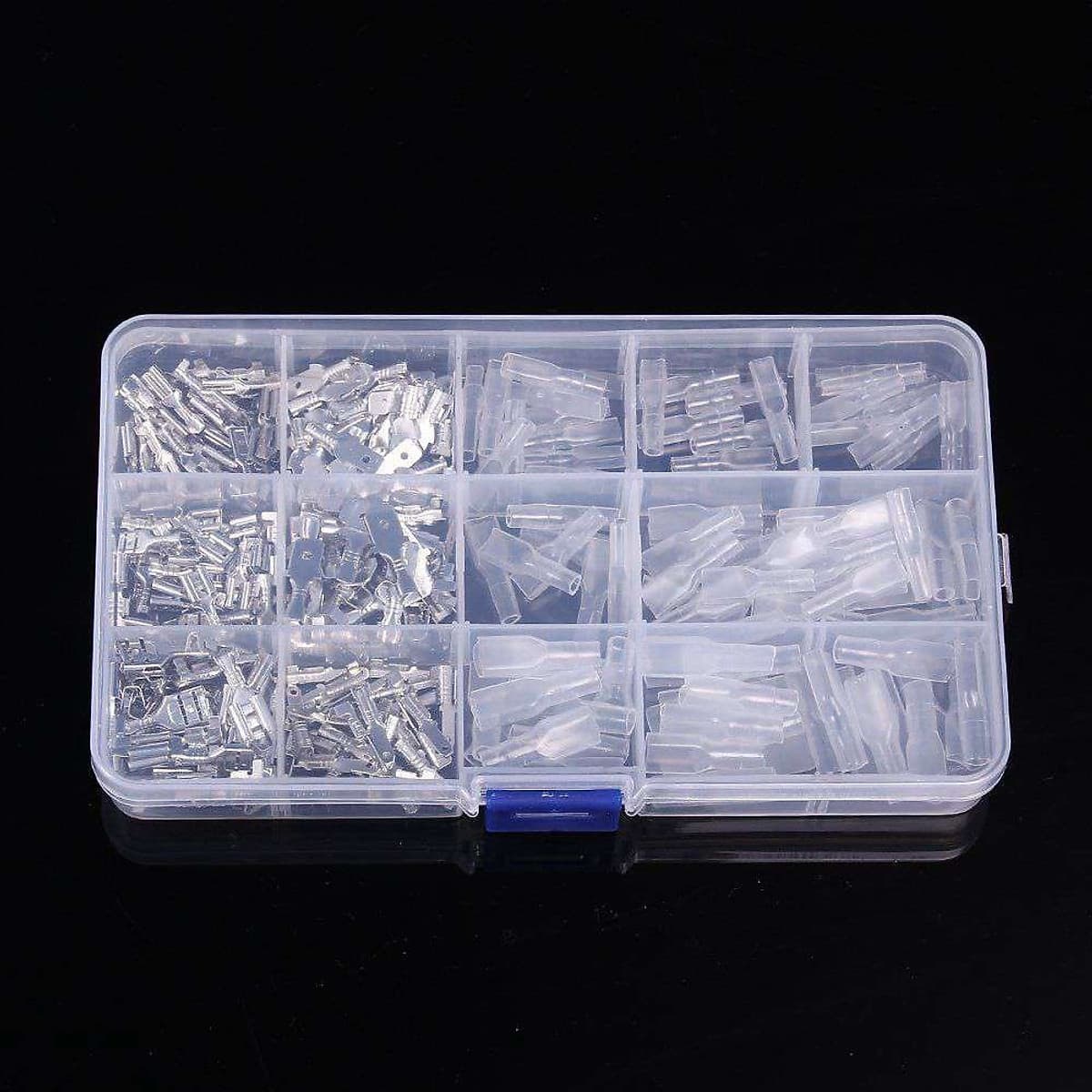

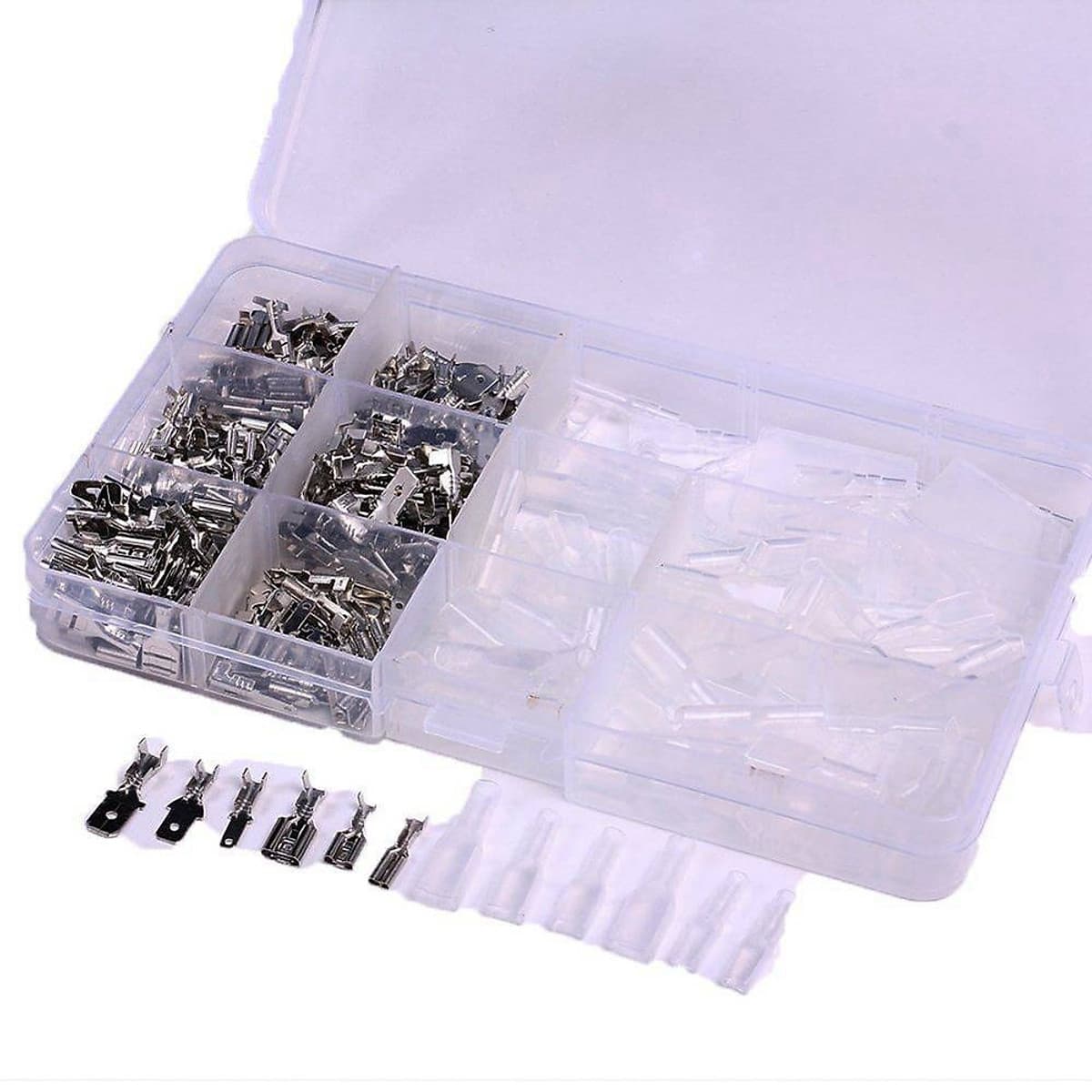

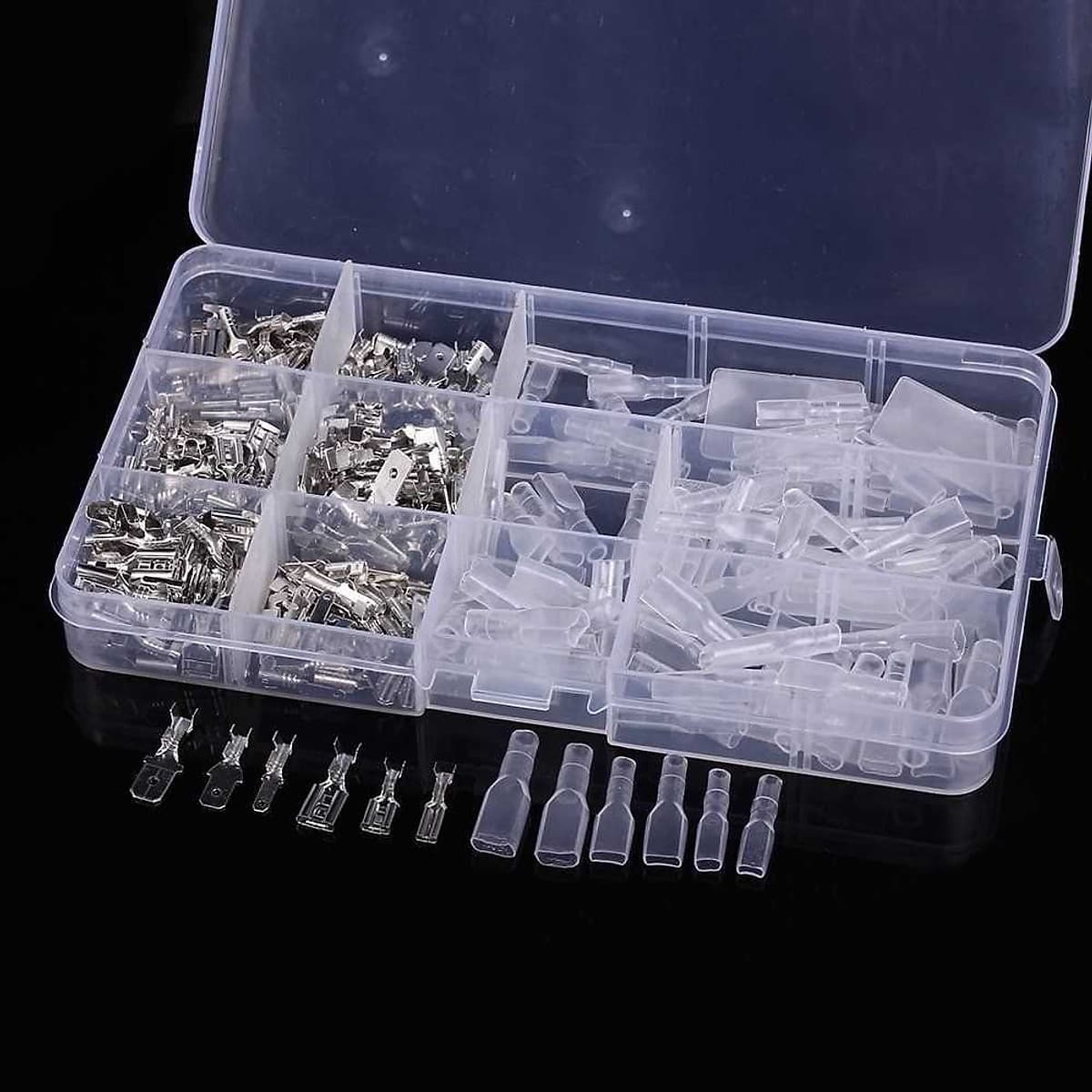

Supplied in a sturdy reusable compartment box to store connectors.
Specifications:
Color: silver+transparent
Total quantity: 270pcs
6.3 type:
Inner diameter: 6.3mm / 0.2in
Thickness: 0.4mm (male), 0.8mm (female)
Compatible wire: 0.75-2.5mm² (AWG 18-14)
4.8 type:
Inner diameter: 4.8mm / 0.2in
Thickness: 0.35mm (male), 0.5mm (female)
Compatible wire: 0.75-2.5mm² (AWG 18-14)
2.8 type:
Inner diameter: 2.8mm / 0.1in
Thickness: 0.25mm (male), 0.5mm (female)
Compatible wire: 0.5-1.5mm² (AWG 22-16)
Package size: 90 x 60 x 35mm / 3.5 x 2.4 x 1.0in
Package weight: 134g / 4.7ounce

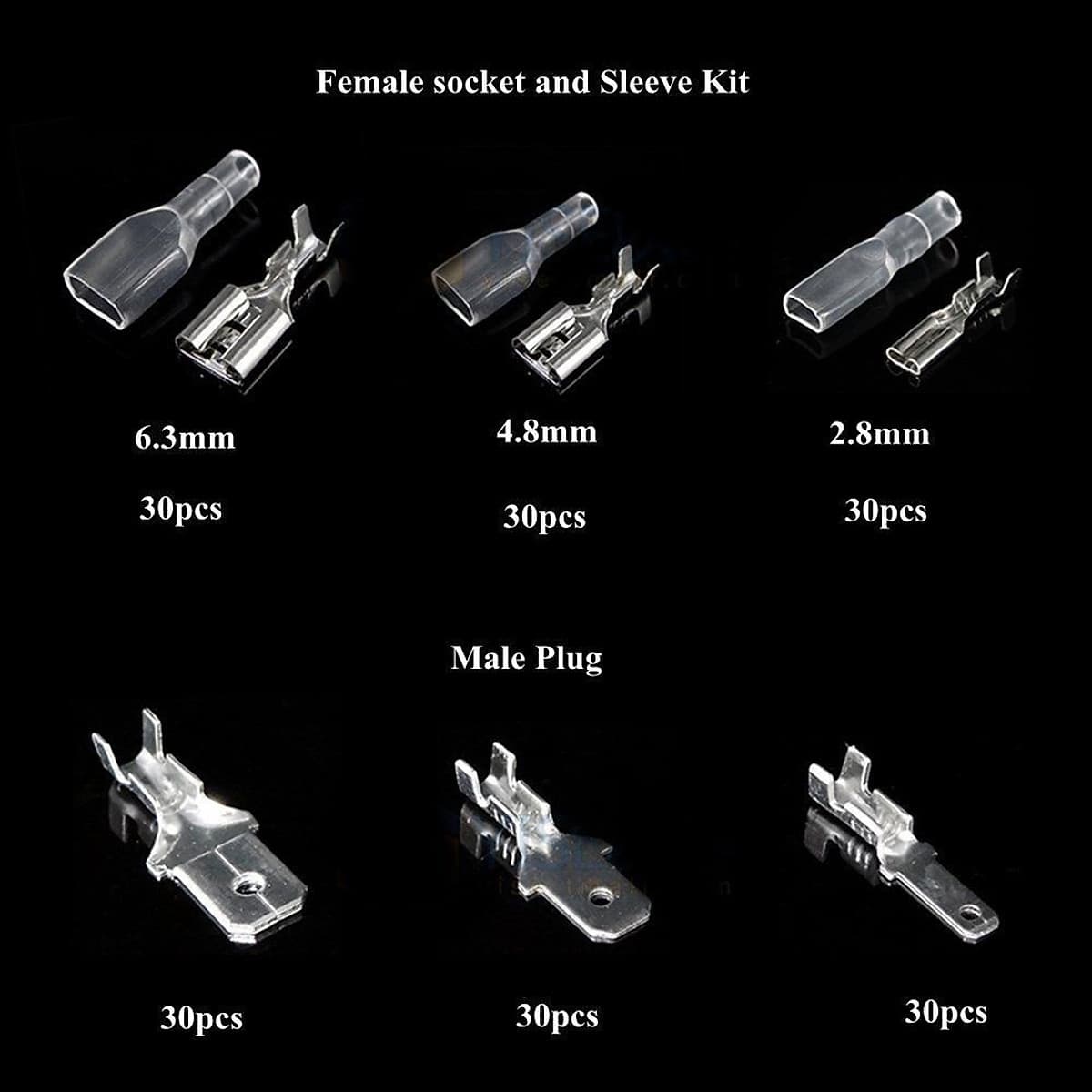

Package list:
30 x 2.8mm Male Spade Crimp Terminal Connector
30 x 4.8mm Male Spade Crimp Terminal Connector
30 x 6.3mm Male Spade Crimp Terminal Connector
30 x 2.8mm Female Spade Crimp Terminal Connector
30 x 4.8mm Female Spade Crimp Terminal Connector
30 x 6.3mm Female Spade Crimp Terminal Connector
90 x Insulating Sleeve for Female Terminal
Including 28mm / 48mm / 63mm types with insulating sleeves
Made of copper with good conductivity, widely used for electric wire connectionMade of fine quality material, practical, easy to install and use, wide application range, has a long service life.
Features:
Non-insulated mixed male and female spade crimp terminal connector assorted kit.
Including 2.8mm / 4.8mm / 6.3mm types with insulating sleeves.
Made of copper with good conductivity, widely used for electric wire connection.
Wire crimp type can be used for home appliances, automobiles, audio systems for battery or rocker switches quick connection / disconnection.
Supplied in a sturdy reusable compartment box to store connectors.
Specifications:
Color: silver+transparent
Total quantity: 270pcs
6.3 type:
Inner diameter: 6.3mm / 0.2in
Thickness: 0.4mm (male), 0.8mm (female)
Compatible wire: 0.75-2.5mm² (AWG 18-14)
4.8 type:
Inner diameter: 4.8mm / 0.2in
Thickness: 0.35mm (male), 0.5mm (female)
Compatible wire: 0.75-2.5mm² (AWG 18-14)
2.8 type:
Inner diameter: 2.8mm / 0.1in
Thickness: 0.25mm (male), 0.5mm (female)
Compatible wire: 0.5-1.5mm² (AWG 22-16)
Package size: 90 x 60 x 35mm / 3.5 x 2.4 x 1.0in
Package weight: 134g / 4.7ounce
Package list:
30 x 2.8mm Male Spade Crimp Terminal Connector
30 x 4.8mm Male Spade Crimp Terminal Connector
30 x 6.3mm Male Spade Crimp Terminal Connector
30 x 2.8mm Female Spade Crimp Terminal Connector
30 x 4.8mm Female Spade Crimp Terminal Connector
30 x 6.3mm Female Spade Crimp Terminal Connector
90 x Insulating Sleeve for Female Terminal
Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Tuy nhiên tuỳ vào từng loại sản phẩm hoặc phương thức, địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, ...
